Important Concepts

The following sections explain key concepts used internally in PackageKit.

Package ID

One important idea is the package_id. This is the name;version;arch;origin;data in a single string and is meant to represent a single package. This is important when multiple versions of a package are installed and only the correct one is removed.

The package_id is parsed and checked carefully in the helper code. The package arch, origin and data are optional, but 4 ;‘s must be present. For instance, gnome-keyring-manager;2.18.0;;; is valid but gnome-keyring-manager;2.18.0 is not. The origin field contains the repository name if the package is available in a repository, and if the backend knows its origin. This also applies to installed packages, if the backend records which repository they were installed from. If the package is a local package file that does not belong to any repository, its value is set to local. The origin field must never contain state information such as installed.

The data field is free for the backend to use for whatever additional information it needs, e.g. whether a package was installed automatically or manually. Its contents are backend-specific, and it must not be parsed by frontends, especially not for state information. Instead the PkInfoEnum that is provided alongside a package_id will provide accurate state information.

The origin field for a local package file must be local as this signifies that no repository origin is available and that the package file resides on the client system.

For example:

  • csup;20060318-5;x86_64;local;: for locally available package file.

  • csup;20060318-5;x86_64;fedora-devel;: for package that is not installed and can be downloaded from the Fedora development repostory.

  • csup;20060318-5;x86_64;fedora-devel;: for locally installed package that was installed from the Fedora development repository (whether a package is installed is conveyed by the accompanying PkInfoEnum, not by the package ID).

  • csup;20060318-5;x86_64;;: for locally installed package without repository information

  • csup;20060318-5;x86_64;fedora-devel;manual: for locally installed package where the backend chose to record in the data field that it was installed manually.

Situation Value Description
Searching installed If installed
available If available to install
Getting Updates update If the package will be updated
update-security If the update is security sensitive
update-enhancement If the update is an optional enhancement
blocked If an update exists, but cannot be installed
install If the package will be newly installed by the update
remove If the package will be removed by the update
obsolete If the package will be removed because another package replaces it
downgrade If the package will be downgraded by the update
Simulating install If the package would be installed
update If the package would be updated
remove If the package would be removed
reinstall If the package would be reinstalled
downgrade If the package would be downgraded
obsolete If the package would be removed because another package replaces it
untrusted If the package is not signed or cannot be verified
Installing/Updating/Removing preparing If we are preparing to process this package
downloading If we are downloading this package
installing If we are installing this package
updating If we are updating this package
reinstalling If we are reinstalling this package
downgrading If we are downgrading this package
removing If we are removing this package
obsoleting If we are removing this package because another package replaces it
cleanup If we are removing the old version of an updated package
Otherwise unknown If we cannot use any other option

How urgent an update is, is not part of the PkInfoEnum. Every package is accompanied by a separate PkSeverityEnum value for this:

Value Description
none The package is not an update, or the severity is not known
low If update is of low severity
medium If update is of medium severity
high If update is of high severity
critical If update is of critical severity

If a backend does not know the severity of an update, the daemon assumes low for update-enhancement, high for update-security and medium for update. A blocked update keeps the severity none unless the backend provides one.

The backend must ensure that the package_id only matches on one single package. A single package_id must be enough to uniquely identify a single object in any repository used on the system.

Filters

Search filtering on the name is done in the backend for efficiency reasons. This can be added into the compiled backend if this is not possible in any new backend design.

Filter options are:

Option Description
installed or ~installed If the package is currently installed. Packages returned with the ~installed filter set are available in remote software sources.
devel or ~devel Development packages are typically not required for normal operation and typically have the suffixes -devel, -dgb and -static.
gui or ~gui GUI programs typically depend on gtk, libkde or libxfce.
application or ~application Packages that provide desktop files and are probably applications.
free or ~free Free software. The package contains only software and other content that is available under a free license. See the Fedora wiki for a list of licenses that are considered free. If a license cannot be determined from the package metadata, or the status of the license is not known, the package will be marked as ‘non-free’.
supported or ~supported If the package is supported by the distribution or retailer or is a unsupported third party package.
basename or ~basename The basename filter will only return results according to the package basename. This is useful if you are searching for pm-utils and you only want to show the main pm-utils package, not any of the -devel or -debuginfo or -common suffixes in the UI. The basename is normally the original name of the source package.
newest or ~newest

The newest filter will only return the newest package available. This is useful if you are searching for gimp and only gimp-2.4.5-1.fc9.i386 would be returned, not gimp-2.4.5-1.fc9.i386, gimp-2.4.4-1.fc9.i386 and gimp-2.4.3-1.fc9.i386.

NOTE: The newest filter processes installed and available package lists separately and so the installed or ~installed filter also has to be specified if only one type of results are required. There is no way to do a newest filter across both installed and available packages.
arch or ~arch The arch filter will only return the packages that match the exact architecture of the system, for instance only showing x86_64 packages on a AMD Turion 64. This would mean that x86_64 packages could be filtered from non-native 32-bit packages. This allows the used to choose non-native packages if a multi-lib policy is allowed.
source or ~source The source filter will only return source packages. These are typically useful when rebuilding other packages.

So valid options would be:

Option Description
none All packages installed or available with no filtering
devel;~installed All non-installed development packages
installed;~devel All installed non-development packages
gui;~installed;~devel All non-installed, non-devel gui programs

Removing installed versions in search results

When outputting a list of packages, it’s important to remove the available package if the same version is installed. This is required, as the user may do SearchName("kernel",filter="none") and only want to return results that can be operated on. For instance, suppose we have installed:

  • kernel-2.6.29.4-167 (installed)
  • kernel-2.6.29.5-191 (installed)

And in the remote software sources we have:

  • kernel-2.6.29.4-167 (fedora)
  • kernel-2.6.29.5-191 (fedora-updates)
  • kernel-2.6.30.1-203 (fedora-updates)

If we do Resolve("kernel",filter="none") we should expect:

  • kernel-2.6.29.4-167 (installed)
  • kernel-2.6.29.5-191 (installed)
  • kernel-2.6.30.1-203 (fedora-updates)

If the kernel-2.6.29.4-167 (fedora) result was returned, this will be in the list of results, and is a valid install target. The user will get very confused why 2.6.29.4-167 is both installed and not installed.

Filter examples

Suppose we have installed:

  • kernel-2.6.29.4-167 (installed)
  • kernel-2.6.29.5-191 (installed)

In the remote software sources we have:

  • kernel-2.6.29.4-167 (fedora)
  • kernel-2.6.29.5-191 (fedora-updates)
  • kernel-2.6.30.1-203 (fedora-updates)

If we do Resolve("kernel",filter="none") we should expect:

  • kernel-2.6.29.4-167 (installed)
  • kernel-2.6.29.5-191 (installed)
  • kernel-2.6.30.1-203 (fedora-updates)

If we do Resolve("kernel",filter="installed") we should expect:

  • kernel-2.6.29.4-167 (installed)
  • kernel-2.6.29.5-191 (installed)

If we do Resolve("kernel",filter="~installed") we should expect:

  • kernel-2.6.30.1-203 (fedora-updates)

If we do Resolve("kernel",filter="newest;installed") we should expect:

  • kernel-2.6.29.5-191 (installed)

If we do Resolve("kernel",filter="newest") we should expect:

  • kernel-2.6.29.5-191 (installed)
  • kernel-2.6.30.1-203 (fedora-updates)

Error Enums

If you have to handle an error, try to use internal-error as little as possible. Just ask on the mailing list, and we can add some more error enums to cover the type of error in an abstract way as possible.

Every error should have an enumerated type (e.g. out-of-memory) and also an error description. The error description is not translated and not converted into the users locale. The error description should be descriptive, as it’s for power users and people trying to debug the problem. For instance, “Out of memory” is not helpful as an error description that is reported in a bugzilla, but “Could not create database index” is. For the description use ; to separate the lines if required.

The following error enumerated types are available for use in all backends:

Error Description
out-of-memory There is an out of memory condition
no-network There is no network connection that can be used
not-supported Not supported by the backend.
NOTE: You shouldn’t be setting non-NULL in the compiled
backend symbol table if you find yourself using this.
internal-error There was an unspecified internal error.
NOTE: Please try and be more specific.
If you are using this then we should probably add a new type.
no-cache The operation is trying to read from the cache, but the cache
is not present or invalid
gpg-failure There was a GPG failure in the transaction
package-id-invalid The package ID is not valid for this transaction
package-not-installed The package that is trying to be removed or updated is not
installed
package-not-found The package that is trying to be removed or updated is not
installed
package-already-installed The (single) package that is trying to be installed or updated is already
installed
all-packages-already-installed Multiple package installs were attempted, but all of
them were already installed. The backend should
generate package-already-installed messages (not errors)
for each package.
package-download-failed A package failed to download correctly
invalid-package-file The file that is supposed to contain a package to
install is corrupt, or is not a valid package file
package-install-blocked The backend’s configuration or policy prevents the
install or updating of a package
dep-resolution-failed Dependency resolution failed
filter-invalid The filter was invalid.
NOTE: syntax checking is done in the backend loader, so you
should only use this if the filter is not supported by the
backend.
group-not-found The specified software group was not found.
create-thread-failed Failed to create a thread
transaction-error There was a generic transaction error, but please give more
details in the description
transaction-cancelled The transaction was cancelled as the result of a call
to Cancel()
repo-not-found The repository name could not be found
repo-configuration-error One of the enabled repositories has invalid configuration
repo-not-available There was a (possibly transient) problem connecting to a
repository
cannot-remove-system-package Could not remove a protected system package that is needed for
stable operation of the system
process-quit The process was asked to quit, probably because it was cancelled
process-kill The process was forcibly killed, probably because ignored the
quit request. This is probably due to it being cancelled
failed-config-parsing Configuration files could not be read or parsed.
cannot-cancel The Cancel() method was called, but it is too late to
cancel the current transaction.
cannot-get-lock The backend could not acquire a lock on the underlying
package management system.
no-packages-to-update UpdatePackages() was called, but there are no packages to update.
cannot-write-repo-config RepoEnable() or RepoSetData() was called, but the
repository configuration file could not be written to.
local-install-failed A local file could not be installed. The file might not
be readable, or it might not contain a valid package.
bad-gpg-signature The package is signed with a GPG signature, but that
signature is not valid in some way.
package-corrupt The downloaded package is corrupt.
file-not-found The file could not be found on the system.

Group type

Groups are enumerated for localisation. Backends should try to put packages in different groups if possible, else just don’t advertise SearchGroup and the options should not be shown in the UI.

The following group enumerated types are available, but please check libpackagekit/pk-enum.h for the latest list.

Group Description
accessibility Accessibility
admin Administration
communication Communication
databases Databases
debug Debug
desktop-gnome GNOME desktop
desktop-kde KDE desktop
desktop-other Other desktops
devel Development files
documentation Documentation
editors Editors
education Education
electronics Electronics
fonts Fonts
games Games
geography Geography
graphics Graphics
internet Internet
lang-c C and C++
lang-go Go
lang-haskell Haskell
lang-java Java
lang-javascript JavaScript
lang-lisp Lisp
lang-ocaml OCaml
lang-perl Perl
lang-php PHP
lang-python Python
lang-ruby Ruby
lang-rust Rust
legacy Legacy
libraries Libraries
localization Localization
meta Metapackages
multimedia Multimedia
network Network
office Office
other Other
programming Programming
publishing Publishing
repos Repositories
science Science
security Security
servers Servers
shells Shells
system System
utilities Utilities
vendor Vendor
virtualization Virtualization

Cancellation

If you have a multipart transaction that can be aborted in one phase but not another then the AllowCancel signal can be sent. This allows for example the hif download to be cancelled, but not the install transaction. By cancelling a job all subtransactions are killed.

By default actions cannot be cancelled unless enabled in the backend. Use AllowCancel(true) to enable cancellation and AllowCancel(false) to disable it. This can be done for any job type.

For compiled backends that are threaded, the cancel() method can be used to terminate the thread.

For spawned backends, cancellation is staggered to give the helper a chance to release locks and clean up after itself:

  • Send a cancel request over the protocol socket. The helper is expected to stop at the next safe point and end the job with the error transaction-cancelled.

  • If the job has not finished after 5 seconds, send the process SIGTERM.

  • If the backend manifest allows it and the process is still alive 5 seconds later, send the process SIGKILL.

Transactions

PackageKit does not ask the user questions when the transaction is running. It also supports a fire-and-forget method invocation, which means that transactions will have one calling method, and have many signals going back to the caller.

Each transaction is a new path on the org.freedesktop.packagekit1 service, and to create a path you have to call CreateTransaction on the base interface which creates the new D-Bus path, and returns the new path for you to connect to. In the libpackagekit binding, PkControl handles the base interface, whilst PkClient handles all the transaction interface stuff. The org.freedesktop.packagekit1.Transaction interface can be used on the newly created path, but only used once. New methods require a new transaction path (i.e. another call to CreateTransaction) which is synchronous and thus very fast.

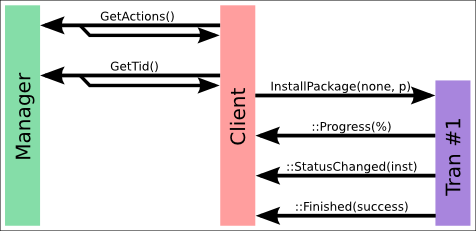

Transaction example: Success

A typical successful transaction would emit many signals such as ::Progress(), ::Package() and ::StatusChanged(). These are used to inform the client application of the current state, so widgets such as icons or description text can be updated.

These different signals are needed for a few different reasons:

  • ::StatusChanged(): The global state of the transaction, which will be useful for some GUIs. Examples include downloading or installing, and this is designed to be a 40,000ft view of what is happening.

  • ::Package(): Used to either return a result (e.g. returning results of the SearchName() method) or to return progress about a _specific_ package. For instance, when doing UpdatePackages(), sending ::Package(downloading) and then ::Package(installing) for each package as processed in the transaction allows a GUI to position the cursor on the worked on package and show the correct icon for that package.

  • ::ErrorCode(): to show an error to the user about the transaction, which can be cleaned up before sending ::Finished().

  • ::Finished(): to show the transaction has finished, and others can be scheduled.

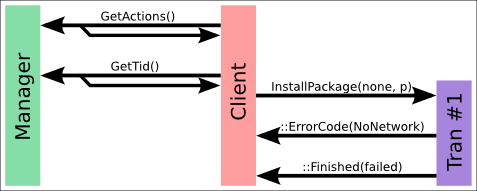

Transaction example: Failure

This is the typical transaction failure case when there is no network available. The user is not given the chance to requeue the transaction as it is a fatal error.

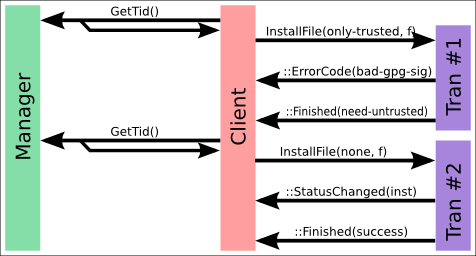

Transaction example: Trusted

In this non-trivial example, a local file install is being attempted. First the InstallFile is called with the only_trusted flag set. This will fail if the package does not have a valid GPG key, and ordinarily the transaction would fail. What the client can do, e.g. using libpackagekit, is to re-request the InstallFile with non-trusted. This will use a different PolicyKit authentication, and allow the file to succeed.

So why do we bother calling only_trusted in the first place? Well, the only_trusted PolicyKit role can be saved in the gnome-keyring, or could be set to the users password as the GPG key is already only_trusted by the user. The non-trusted action would likely ask for the administrator password, and not allowed to be saved. This gives the user the benifit of installing only_trusted local files without a password (common case) but requiring something stronger for untrusted or unsigned files.

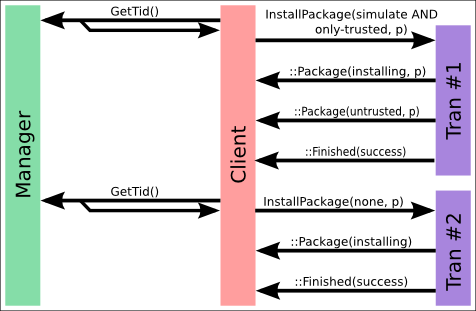

Transaction example: Auto Untrusted

If SimulateInstallPackage or SimulateInstallFile is used then the client may receive a INFO_UNTRUSTED package.

This is used to inform the client that the action would require the untrusted authentication type, which means the client does not attempt to do SimulateInstallPackage(only_trusted=TRUE) and only does SimulateInstallPackage(only_trusted=FALSE). This ensures the user has to only authenticate once for the transaction as the only_trusted=TRUE action may also require a password.

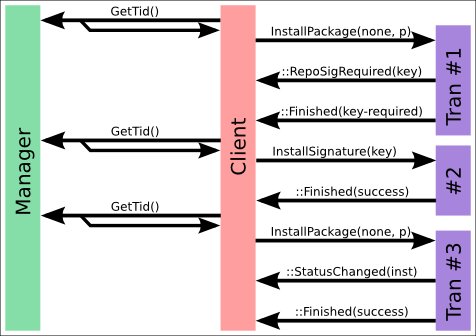

Transaction example: Package signature install

If the package is signed, and a valid GPG signature is available, then we need to ask the user to import the key, and re-run the transaction. This is done as three transactions, as other transactions may be queued and have a higher priority, and to make sure that the transaction object is not reused.

Keep in mind that PackageKit can only be running one transaction at any one time. If we had designed the PackageKit API to block and wait for user input, then no other transactions could be run whilst we are waiting for the user.

This is best explained using an example:

  • User clicks “install vmware” followed by “confirm”.

  • User walks away from the computer and takes a nap

  • System upgrade is scheduled (300Mb of updates)

The vmware package is downloaded, but cannot be installed until a EULA is agreed to. If we pause the transaction then we never apply the updates automatically and the computer is not kept up to date. The user would have to wait a substantial amount of time waiting for the updates to download when returning from his nap after clicking “I agree” to the vmware EULA.

In the current system where transactions cannot block, the first transaction downloads vmware, and then it finishes, and puts up a UI for the user to click. In the meantime the second transaction (the update) is scheduled, downloaded and installed, and then finishes. The user returns, clicks “okay” and a third transaction is created that accepts the eula, and a forth that actually installs vmware.

It seems complicated, but it’s essential to make sure none of the callbacks block and stop other transactions from happening.

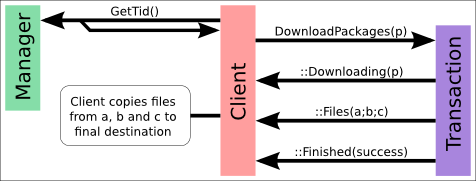

Transaction example: Download

When the DownloadPackages() method is called on a number of packages, then these are downloaded by the daemon into a temporary directory. This directory can only be written by the packagekitd user (usually root) but can be read by all users. The files are not downloaded into any specific directory, instead a random one is created in /var/cache/PackageKit/downloads. The reason for this intermediate step is that the DownloadPackages() method does not take a destination directory as the dameon is running as a different user to the user, and in a different SELinux context.

To preserve the SELinux attributes and the correct user and group ownership of the newly created files, the client (running in the user session) has to copy the files from the temporary directory into the chosen destination directory. NOTE: this copy step is optional but recommended, as the files will remain in the temporary directory until the daemon is times out and is restarted. As the client does not know (intentionally) the temporary directory or the filenames of the packages that are created, the ::Files() signal is emitted with the full path of the downloaded files. It is expected the package_id parameter of ::Files() will be blank, although this is not mandated.

Multiple ::Files() signals can be sent by the dameon, as the download operation may be pipelined, and the client should honour every signal by copying each file.

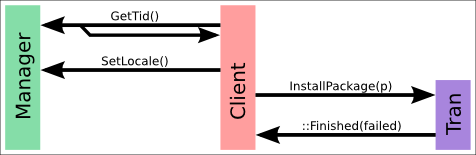

Transaction example: Setting the locale

The PackageKit backend may support native localisation, which we should support if the translations exist. In the prior examples the SetLocale() method has been left out for brevity. If you are using the raw D-Bus methods to access PackageKit, you will also need to make a call to SetLocale() so the daemon knows what locale to assign the transaction. If you are using libpackagekit to schedule transactions, then the locale will be set automatically in the PkControl GObject, and you do not need to call pk_client_set_locale() manually.

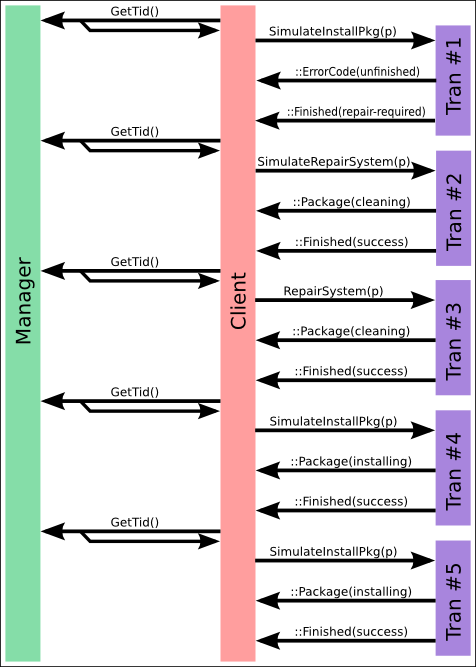

Transaction example: Repair

If the package management system is damaged, a repair may be required. This is not automatically done befor each transaction as the user may have to verify destructive package actions or make manual changes to configuration files.

This transaction sequence is not common and is not supported on many backends. It may be completely implemented in the frontend or not at all.

Transaction IDs

A transaction_id is a unique identifier that identifies the present or past transaction. A transaction is made up of one or more sub-transactions. A transaction has one role for the entire lifetime, but the transaction can different values of status as the transaction is processed.

For example, if the user “Installed OpenOffice” and the backend has to:

  • update libxml2 as a dependency

  • install java as dependency

  • install openoffice-bin

  • install openoffice-clipart

This is one single transaction with the role install, with 4 different sub-transactions.

The transaction_id must be of the format /job_identifier_data where the daemon controls all parameters. job is a monotonically updating number and is retained over reboots. identifier is random data used by the daemon to ensure jobs started in parallel cannot race, and also to make a malicious client program harder to write. data can be used for ref-counting in the backend or for any other purpose. It is designed to make the life of a backend writer a little bit easier. An example transaction_id would be /45_dafeca_checkpoint32

Status Values

A transaction will have different status values as it it queued, prepared and executed. The ::StatusChanged signal from PkClient allow you to design user interfaces that tell the user what is happening with the transaction.

A typical transaction will have the following states:

  • Queued in the active queue (PK_STATUS_ENUM_WAIT)

  • Transaction started, and is being prepared (PK_STATUS_ENUM_SETUP)

  • The transaction is running (PK_STATUS_ENUM_RUNNING)

  • (optional) Data is downloading (PK_STATUS_ENUM_DOWNLOADING)

  • (optional) Data is installing (PK_STATUS_ENUM_INSTALLING)

  • The transaction is finished (PK_STATUS_ENUM_FINISHED)

If the transaction is waiting for other jobs to finish (in the active queue) then the status will be stuck at PK_STATUS_ENUM_WAIT and the UI should show a message to this effect.

If the transaction is waiting for a package lock (when a legacy tool like pirut is loaded and has the hif lock) then the transaction will be stuck at PK_STATUS_ENUM_WAITING_FOR_LOCK.

As a backend writer, you do not have to set PK_STATUS_ENUM_RUNNING manually, as this will be set for you if you set any other value such as PK_STATUS_ENUM_DOWNLOADING or PK_STATUS_ENUM_INFO. However, you will need to avoid setting any status values until a package lock is available and the transaction has started.
